Detail produk:
|
| Kecepatan: | 10 Gb/dtk | Panjang gelombang: | Tx1330nm/Rx1270nm |
|---|---|---|---|
| Antarmuka: | Wadah LC/SC | Jenis Laser: | DFB |
| Tipe PD: | Pin | Kepekaan: | >-16dBm |
| Daya keluaran optik: | 0,8 hingga 1,6mW | Kata kunci: | 10G T1330nm R1270nm BOSA, DFB 1270nm PIN |
| Menyoroti: | SubAssembly Optik 10Gbps,SubAssembly Optik WDM,TX1330nm LC SC |
||

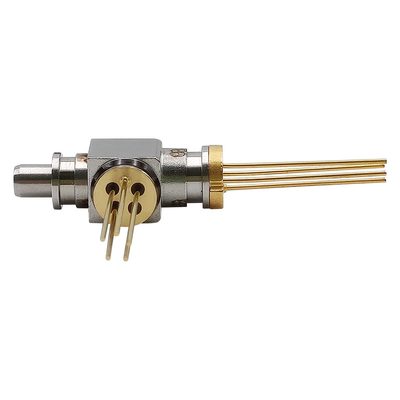

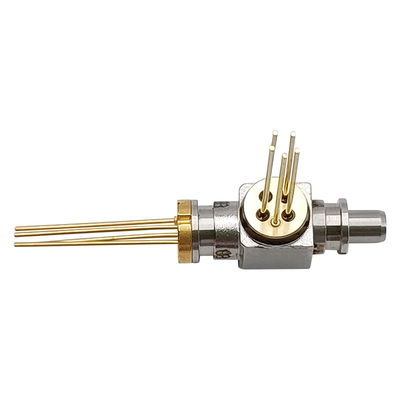

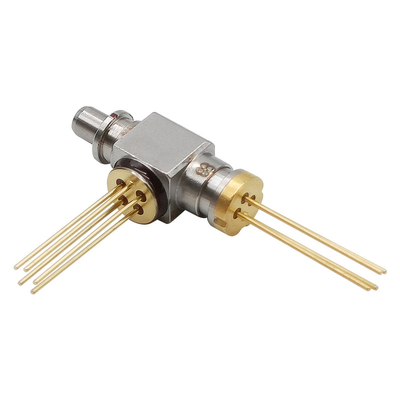

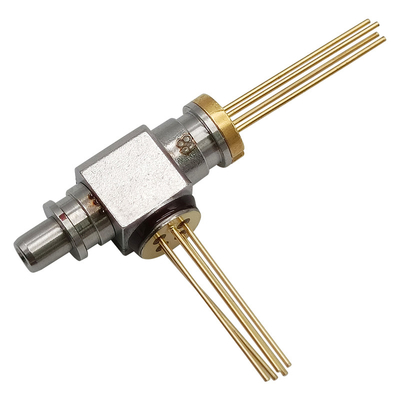

BOSA 10GbpsWDM TX1330nm DFB/PIN RX1270nm LC SCSub-Perakitan Optik Dua Arah
Keterangan
BOSA-T1330DFB-R1270PIN-10G-LC-REC GIGAOPTO dirancang untuk komunikasi data.Sisi pemancar menggunakan laser DFB 1330nm.Sisi penerima menggunakan PIN 1270nm dengan TIA.Filter WDM dapat memisahkan lampu masukan 1270nm dan lampu keluaran 1330 nm.
Peringkat Maksimum Mutlak (Tc=25, kecuali dinyatakan lain)
| Parameter | Simbol | min. | Maks. | Satuan |
| Tegangan Terbalik (LD) | VRL | --- | 2 | V |
| Tegangan Terbalik (MPD) | VRD | --- | 15 | V |
| Arus Maju (MPD) | SayaFD | --- | 2 | mA |
| Tegangan Operasi TIA | VCC | 3.0 | 3.6 | V |
| Suhu Kasus Operasi | Top | -40 | +85 | |
| Suhu Penyimpanan | TSTG | -40 | +85 | |
| Suhu Solder Timbal (Maksimum 10 detik) | TS | --- | 260 | |
| LD TO-can Pull Force | --- | 30 | --- | Kgf |
| PD TO-can Pull Force | --- | 15 | --- | Kgf |
| Gaya geser | --- | 30 | --- | Kgf |
| ESD | 500 | --- | --- | --- |
Karakteristik Optik Dan Listrik
| Parameter | Simbol | min. | Ketik | Maks. | Satuan | Tes kondisi |
| pemancarr(TC=25±3℃) | ||||||
| Arus Ambang Batas | Sayath | --- | 8 | 15 | mA | CW, TC=25℃ |
| --- | --- | 30 | CW, TC=85℃ | |||
| Daya Output Optik | Pf | 0.8 | --- | 1.6 | mW | CW, Iop=35mA, Tc=25℃ |
| Tegangan Operasi | Vop | --- | 1.2 | 1.6 | V | CW, Iop＝Ith+20mA |
| Waktu Naik/Turun | Tr /Tf | --- | --- | 120 | ps |
PF = 5.0mW, Rasio Kepunahan> 10dB, 20% -80%, tanpa filter |
| Pusat Panjang Gelombang | 1320 | 1330 | 1340 | nm | Iop=30mA, Tc=25℃ | |
| Lebar Spektrum (-20dB) | --- | --- | 1 | nm |
Iop = 30mA, TC=-40℃~85 |
|
| Pantau Arus | Aku | 100 | --- | 1000 | A | CW, Iop = 35mA |
| SMSR | --- | 30 | 35 | --- | dB |
Iop = 30mA, TC=-40℃~85 |
| Pantau Arus Gelap | Indo | --- | --- | 100 | tidak ada | Vrd = 5V |
| Kapasitansi PD | C | --- | 3 | 10 | pF | Vrd=5V@f=1MHz |
| Kesalahan Pelacakan (CW) | TE | -1.5 | --- | 1.5 | dB |
CW,-40℃/+85, Pantau terus saat ini @ Iop = 35mA |
| Penerima(TC=25±3℃) | ||||||
| Tegangan Pasokan | VCC | 3.0 | 3.3 | 3.6 | V | CW |
| Arus suplai | Sayacc | 15 | 27 | 39 | mA | Vcc = 3.3V |
| Panjang Gelombang Optik | 1250 | 1270 | 1290 | nm | CW | |
| Kepekaan | Sen. | --- | --- | -16 | dBm |
=1270nm , PRBS=2^31-1, BER=10-12, ER=10dB, @10Gbps |
| Kekuatan Saturasi | Psat | 0 | --- | --- | dBm | |
| Responsivitas PD | R | 0,7 | --- | --- | A/W | CW, =1270nm |
