Detail produk:
|
| Nama Produk: | 10G EPON ONU PR30 BOSA | LD/PT: | DFB+APD-TIA |
|---|---|---|---|
| Jarak: | 20km | Kecepatan Data: | Tx10G/Rx10G |
| Panjang gelombang (nm): | 1270nm_Tx/1577nm_Rx | Suhu Operasi (℃: | 0 -75℃ / -40- 85℃ |
| Daya Keluaran @25℃: | >3,0mW | Sensitivitas @25℃: | < -30dBm |
| Kata kunci: | 10G EPON ONU, PR30 BOSA SC Pigtail | ||
| Menyoroti: | SubAssembly Optik APC,SubAssembly Optik Simetris,UPC Sc Pigtail |
||

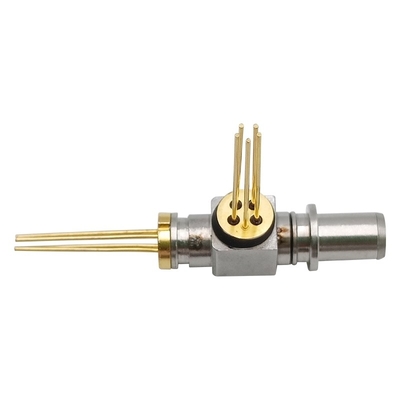

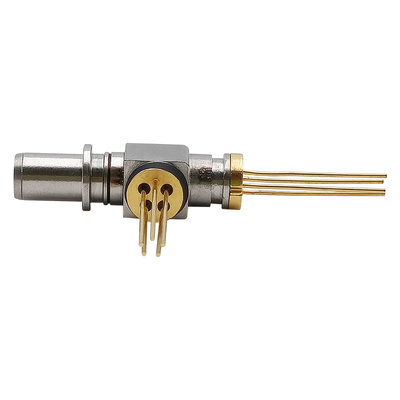

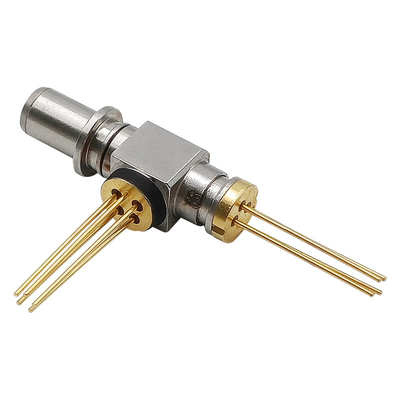

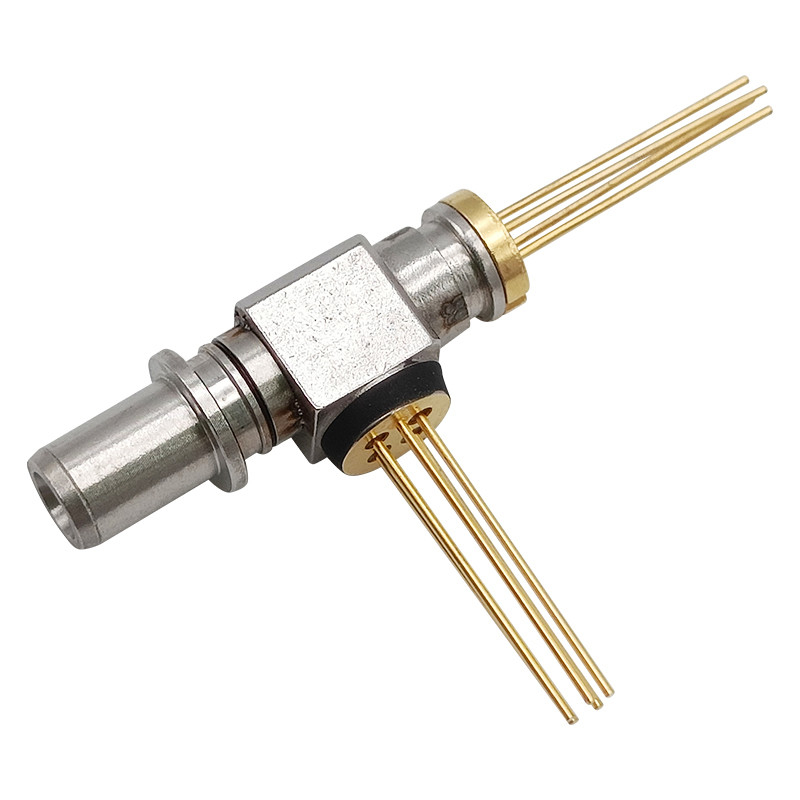

10GEPON ONU BOSA PR30 Simetris SC APC UPC pigtail TX 1270nm DFB 10G RX 1577nm APD 10.3125G FTTH FTTX
Mengadopsi skema pengelasan laser
Aplikasi titik ke titik
Isolasi optik tinggi
Sensitivitas tinggi APD-TIA
Suhu kerja: 0～75℃ atau -40~85℃
Plug-in SC BOSA
Peringkat Maksimum Mutlak
| Barang | Simbol | Satuan | min | Maks | Catatan |
| Suhu Penyimpanan | TSTG | -40 | +85 | ||
| Suhu Operasi (ambien) | TOPR | 0 | +75 | ||
| Tegangan Pasokan | VCC | V | -0,5 | 4,5 | |
| Suhu Solder Timbal (Maks10 detik) |
TS | --- | 260 | ||
| Arus Maju (LD) | SayaFLD | mA | --- | 150 | |
| Tegangan Terbalik (LD) | VRLD | V | --- | 2 | |
| Arus Maju (MPD) | SayaFMPD | mA | --- | 2 | |
| Tegangan Terbalik (MPD) | VRMPD | V | --- | 20 | |
| Arus Maju (PD) | SayaFPD | mA | --- | 10 | |
| Tegangan Terbalik (PD) | VRPD | V | --- | 20 |
Karakteristik Elektro-Optik Pemancar (TC=25°C, CW)
| Barang | Simbol | Tes kondisi | min. | Ketik | Maks. | Satuan |
| Arus Ambang Batas | SayaTH | TC=25℃ | --- | -- | 15 | mA |
| TC=0℃～75℃ | --- | -- | 40 | |||
| Tegangan Maju | VF | PF=PF (Min), TC =25℃ | --- | --- | 1.5 | V |
| Daya Output Optik | Pf | CW, @ITH+20mA, 25℃, bebas kusut | 3.0 | --- | --- | mW |
| Daya Output Optik | Pf | CW, @ITH+20mA, 0℃～75℃ | 1.8 | mW | ||
| Daya Output Optik | Pf | mW | ||||
| Pusat Panjang Gelombang | C | CW, TC=0℃～75℃,TX;1270nm | 1260 | 1270 | 1280 | nm |
| Pantau Arus | SayaM | CW,Pf=Ith+20mA, VRMPD=1.5V, Tc=25C, |
100 | --- | 900 | uA |
| Pelacakan eror | Pf/Pf | 0℃～75℃, CW, Pf (Ith+20mA)@IM tahan | -1.5 | --- | +1.5 | dB |
Karakteristik Elektro-Optik Penerima (TC=25°C , Vcc=3.3V)
| Barang | Simbol | Tes kondisi | min. | Ketik | Maks. | Satuan |
| Arus suplai | ICC | --- | --- | --- | mA | |
| Operasi Panjang Gelombang | RX:1577nm | 1575 | 1577 | 1580 | nm | |
| Kekuatan Saturasi | PDUDUK | Tc=-0℃～75℃(Uji pada 10.3125Gbps PRBS31 ER=6dB BER<10E-3) |
-8 | --- | --- | dBm |
| Kepekaan | Sen | Tc=0℃～75℃(Uji pada 10.31252Gbps PRBS31 ER=6dB BER<10E-3) |
--- | -30 | dBm | |
| Kerugian Pengembalian Optik | ORL | =1577nm | 20 | --- | --- | dB |
| Crosstalk Optik | XTALK | 1270nm/1577nm | 40 | --- | dB |
Garis Besar Dimensi
